Coffman Lore Class A PP w/Tube Power Supply
The LORE is a vacuum tube headphone amplifier that also functions as a low power speaker amplifier, thus providing great flexibility in limited spaces. It was created as a heritage piece— something that can last for decades. Some of the parts (like the switches) are sourced from military aircraft, made to withstand high stress. All the external case and knobs parts are custom-made only for our products.
Description
All Tube Headphone Amp. Two Pairs of 25L6 Power Tubes and one pair of 12AU7 Drivers. Each amplifier is artfully hand-wired in-house. We use only premium components and each unit leaves our lab to you with the assurence it was build to last.
Implemented correctly traditional electron tubes provide a powerful punch and emotional impact to your listening experience. We source New Old Stock tubes for you and audition each amp with the tubes selected for your amp.
Put yourself in the auditorium or recording studio with the artist. Get purely analog sound from your digital source and experience the difference.

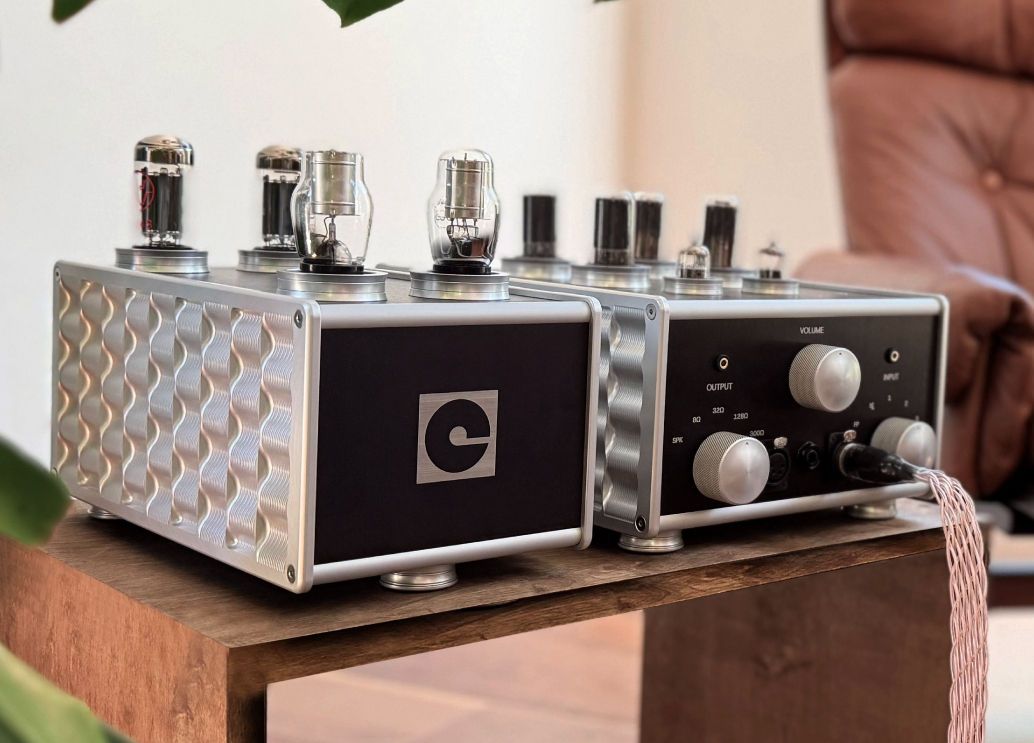

Coffman Lore Class A Tube Headphone Amp w/Solid State or Tube Power Suply
TRULY UNIQUE PRODUCT
- LORE is a tube-based analog headphone amplifier. It is powered by two pairs of 50L6 or 25L6 tubes in push-pull mode driven by one pair of 12AU7s. All tubes are sourced by Coffman Audio Labs© N.O.S. and matched for each amplifier.
- LORE standard external power supply is solid-state.
- LORE has an upgrade option for a dual mono (2) 5AR4 tube rectified (2) OC3 / VR105 voltage-regulated power supply— thus allowing for the best possible sound. This upgrade includes a JenaLabs© 716 Power Cord and high-quality fuses (2) 1 spare.
- LORE is hand-assembled entirely in the U.S.A. at Coffman Audio Labs.
- LORE is electrically rugged and meant to last.
- LORE chassis is 100% machined (not stamped metal) and can take abuse.
- LORE chassis parts are interlocked in specially designed machined slots so that only four bolts per side are required to keep the structure intact.
- LORE external casework, knobs, footers, base rings, and tube shields are locally machined only for our products.
- LORE internal wiring for the audio signal is high-quality 18AWG and 22AWG UltraWire© directly from JenaLabs©.
- LORE has high-quality Cardas© Binding Posts, Neutrik© RCA and XLR4 connectors, and Military N.O.S. Switches.
- LORE components include Vishay©, Belton©, Russain N.O.S. P.I.O. Capacitors, and custom-designed transformers specifically for our products.
- LORE contact points are mechanical as well as electrical.
- LORE is entirely point-to-point wired with high-quality Cardas© solder and phenolic terminal strips— it should last decades.
Operation
Coffman Labs' LORE uses a 12AU7 tube gain stage to drive a pair of 50L6 or 25L6 tubes in push-pull mode (The serial number on the back will indicate which tube type is used). This provides more power than is needed for almost all headphones and can easily drive high-efficiency speakers with 2 watts. Four separate output impedances are provided to match listening equipment, including speakers @ 8 ohms, standard headphones and In-Ear Monitors @ 8-32 ohms, and high-impedance headphones @ 128-600 ohms.
